acme-plot

Simple plotting for time series data

Features

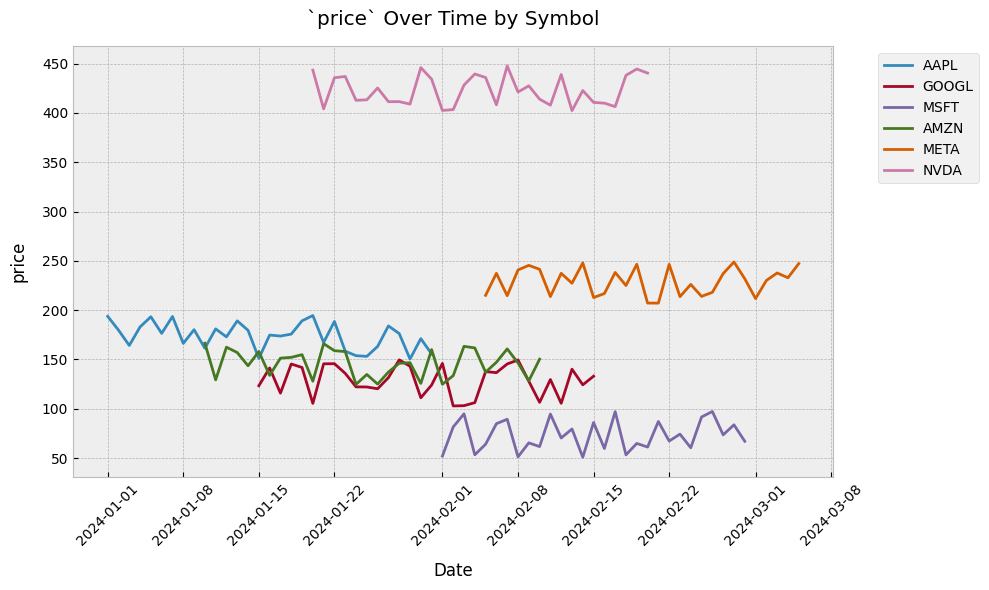

  • Plot a value over time for each symbol in the dataframe

Single plot Single plot

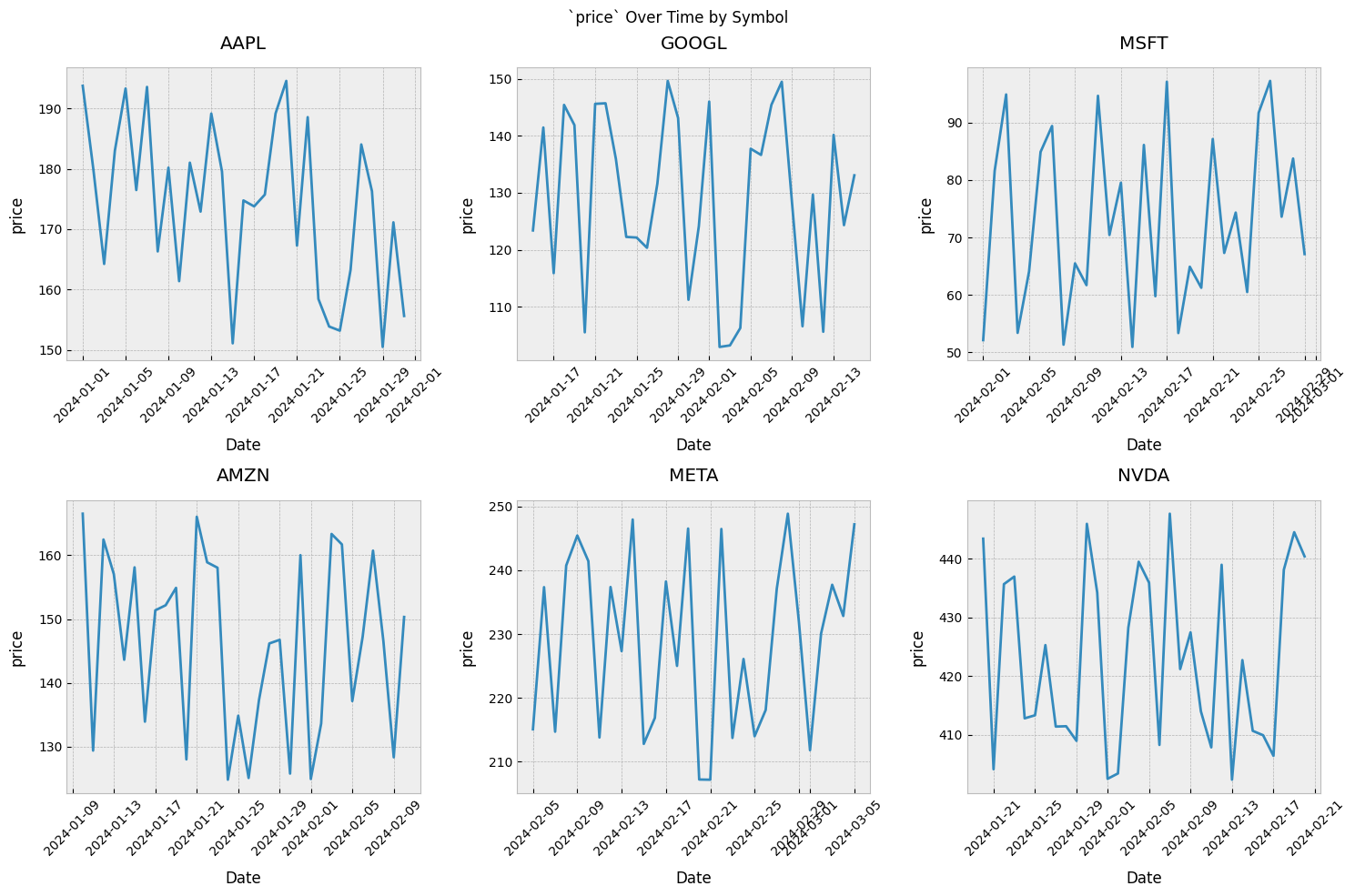

  • Split plot into multiple subplots if there are more multiple symbols

Multiple plots Multiple plots

Dev environment

The project comes with a python development environment. To generate it, after checking out the repo run:

chmod +x create_env.sh

Then to generate the environment (or update it to latest version based on state of uv.lock), run:

./create_env.sh

This will generate a new python virtual env under .venv directory. You can activate it via:

source .venv/bin/activate

If you are using VSCode, set to use this env via Python: Select Interpreter command.

Example usage

See src/acme_plot/notebook.ipynb for example usage.

plt = plot_column(df, 'price')
plt.show()

Project template

This project has been setup with acme-project-create, a python code template library.

Required setup post use

  • Enable GitHub Pages to be published via GitHub Actions by going to Settings-->Pages-->Source
  • Create release environment for GitHub Actions to enable uploads of the library to PyPi. Set protections on what tags can deploy to this environment (Point 10). Set it to tags following pattern release/*.
  • Setup auth to PyPI for the GitHub Action implemented in .github/workflows/release.yml via Trusted Publisher uv publish doc
  • Once you create the python environment for the first time add the uv.lock file that will be created in project directory to the source control and update it each time environment is rebuilt

  • In order not to replicate documentation in docs/docs/index.md file and README.md in root of the project setup a symlink from README.md file to the index.md file. To do this, from docs/docs dir run:

    ln -sf ../../README.md index.md
